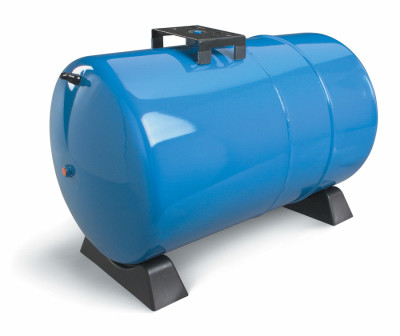

Reliance 14 Gallon Capacity Horizontal Pressure Pump Tank. It meets the requirements of and is listed by the National Sanitation Foundation NSF under ANSI /NSF STD 61. The seamless butyl diaphragm flexes rather than stretching and creasing like bladder tanks, ensuring durability. The polypropylene liner for the water reservoir does not flake, chip, crack, or peel, maintaining the taste and odor of the water. The diaphragm and liner isolate water from contact with the deep drawn steel domed shell, which is twice as strong as a rolled steel shell of the same thickness. A high gloss enamel finish protects the tank from the elements. Pre-charged to 25 PSI, it offers a usable water drawdown of 4.3 US gallons at 30-50 PSI. It features a 1" male pipe thread connection.
- 14 Gallon Capacity Horizontal Pressure Pump Tank.
- Designed to meet the requirements of & are listed by the National Sanitation Foundation NSF under ANSI /NSF STD 61.
- Butyl diaphragm has seamless construction & is designed to flex rather than stretch & crease like bladder tanks.
- Polypropylene liner for the water reservoir will not flake, chip, crack or peel & does not impart taste & odor to the water.
- Diaphragm, liner isolate water from contact with deep drawn steel domed shell, twice as strong as rolled steel shell of same thickness.
- A high gloss enamel finish protects tank from the elements.
- Pre-charged to 25 PSI.
- Usable water drawdown @ 30-50 PSI, 4.3 US gallons.
- 1" male pipe thread connection.
Product Videos
Custom Field
Model PMDH-14
